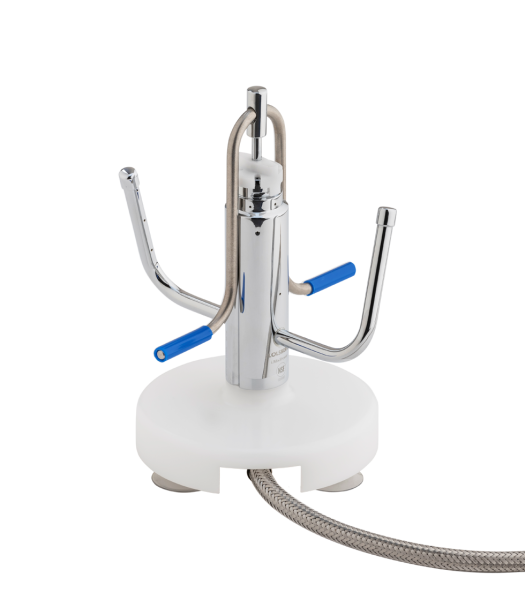

LÖLSBERG i.MixShower

Spray rinsing unit for containers, glasses and metal collars for paper cups with automatic waterstop, water-backflow-preventer and adjustable and removable cap for versatile applications with round/large container incl. strainer insert for drain connection.

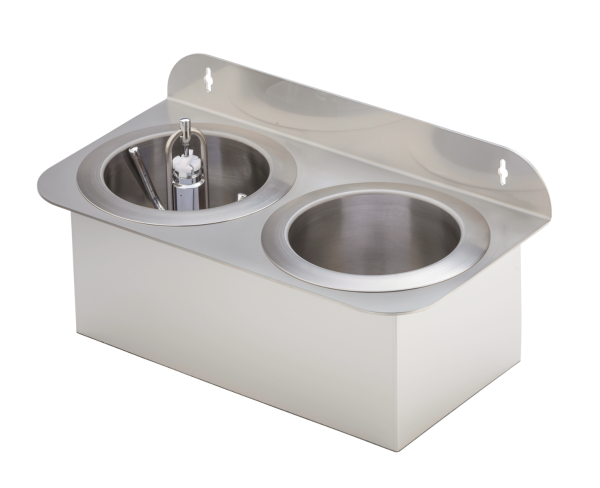

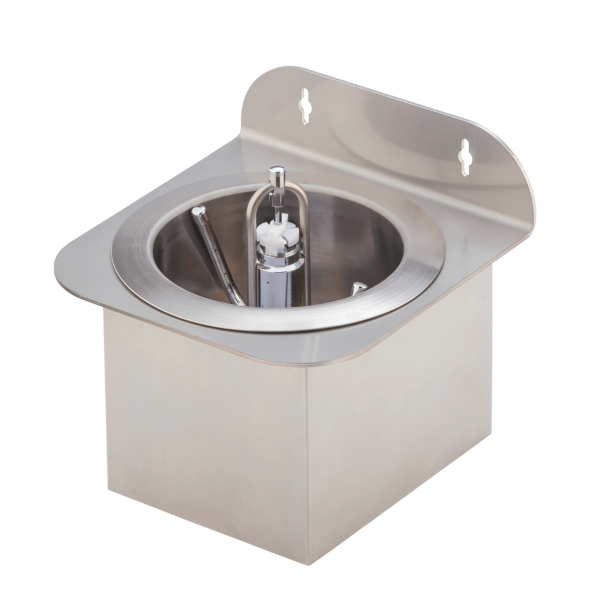

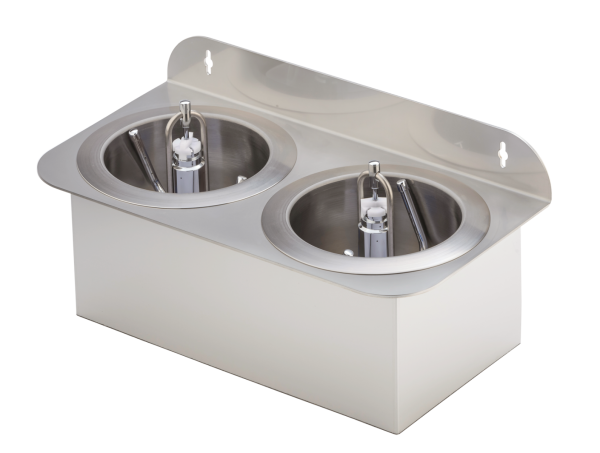

Fit-in version

Dimensions LxWxH (approx. mm)
Container without border 150 x 150 x 115
Container with border 200 x 200 x 115

Water connection 1/2“ + 1"

Our revised i.MixShower is designed to perfectly clean or pre-rinse all common containers such as blender jugs, glasses (e.g. drinking glasses, latte-macchiato-glasses), drink mixer cups, shakers, metal collars for paper cups, jars etc with a minimum consumption of water.

Integrated automatic waterstop inside the lower tube

• Inside the lower tube of the spray rinsing unit we built-in an automatic waterstop, which closes automatically when turning off the spray heads

• This enables a comfortable and easy cleaning of the spray rinsing unit even from inside without requiring to disassemble the complete unit

• Also here we paid attention to the details: The gaskets are clipst onto the valve plate and won’t get lost easily!

i.MixShower e.g. to be used with drink mix cup collars

• Versatile due to adjustable and removable cap - 3 positions possible:

• Cap Position 1: Water jet only horizontal

i.MixShower to be used e.g. with small blender jugs, milkshake cups and glasses

• Versatile due to adjustable and removable cap - 3 positions possible:

• Cap Position 2: Water jet horizontal and vertical

• Cap Position 3 (cap removed): Water jet horizontal and vertical


Operation with activation bail

• Activation of the device by the border of a container. This ensures, that e.g. the device doesn‘t touch the sensitive blades at the bottom of a container (blades are not damaged)

Operation without activation bail

• Activation of the device by the bottom of a container (application of the protective sleeve for the valve rod instead of the activation bail)

You can also find further product details on our website:
